Helical Rack & Pinion Systems

gearbox-rack-pinion-system-300h

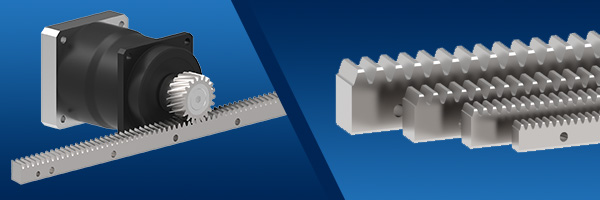

GAM’s precision helical rack and pinion systems are designed for an optimized linear solution.

Features

  • Helical Rack for smooth, quiet operation
  • Purchase rack sticks alone or with a gearbox and pinion for a complete system
  • Helical rack in stock in 4 modules and 2 precision levels.
  • Precision pinions are designed for optimized system performance when paired with GAM gearboxes.
  • Pinions pre-mounted to gearbox for easy integration.
  • Lubrication system and felt pinions available

Visit the GAM Rack & Pinion Systems page, get the Rack & Pinion catalog, or contact GAM for more information.

Robot 7th Axis Application

Drive a robot 7th axis with a GAM rack and pinion system. Get optimal performance with pinions designed to pair with GAM servo gearboxes

articulated-robot-7th

 Helical Gear Rack

Helical Rack in modules 1.5, 2, 3, 4
  • Modules 1.5 - 4 in 1-meter lengths
  • ISO Q6 or Q10
  • Standard and in stock

Helical Pinions

Helical pinions in 5 styles
  • 5 styles of mounting types
  • ISO Q6
  • Get pre-mounted to GAM gearboxes

Rack & Pinion Systems

rack-pinion-SPH_138h
GAM helical rack and pinion systems are engineered to maximize the performance of  each component: gearbox, pinion, and rack.
